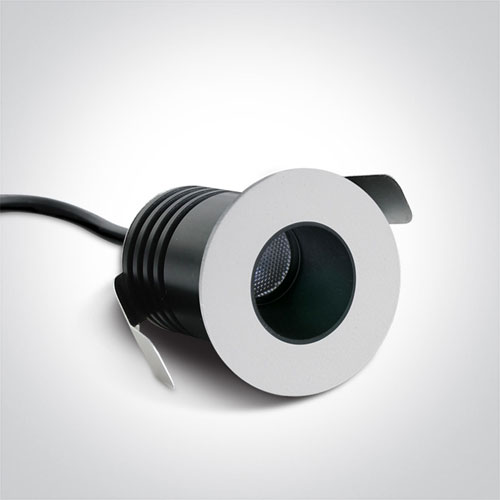

1W or 1.5W MINI SERIES IP65 Low Glare LED Downlight (4000K) White/Black - Ø37mm

View technical specifications 1W or 1.5W MINI SERIES IP65 Low Glare LED Downlight (4000K) White/Black - Ø37mm - DOWNLOAD (4 MB)

Description

A new addition to the MINI Series of LED downlights, these downlights can be operated from 350mA giving 1W or from 500mA giving 1.5W. With a very small diameter of only 37mm this downlight will fit in to 30mm cutouts.

  • 1W (100lm) @ 350mA
  • 1.5W (150lm) @ 500mA

Specification

  • Beam Angle - 30 Degrees
  • Cap/Lampholder - Non User Replaceable LED
  • Cut Out - 30mm
  • Diameter - 37mm
  • Dimmable - ** OPTIONS AVAILABLE **
  • Finish - White/Black
  • Fixing - Spring Clips
  • Height - 40mm
  • IP Rating - IP65
  • Lamp - Non User Replaceable LED
  • LED Colour - 4000K CRI90 100lm
  • Material - Aluminium
  • QTY per pack - 1
  • Recessed Depth - 50mm
  • Wattage - 1W @ 350mA or 1.5W @ 500mA

Installation/Additional Images (click to enlarge)

1. SELECT POWER OUTPUT:

[click to expand]

To make your product specification please make a selection from the component list provided:

1.5W 500mA
1W 350mA
continue

2. NUMBER OF LUMINAIRES REQUIRED PER SET * I.E. WIRED TO ONE POWER SUPPLY *

[click to expand]

Please select how many fittings you would like to operate per set (from a single power supply) with Plug & Play Connections. If your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

SET/S OF 1 JST-XH - Series Connection
SET/S OF 10 PSU-10S - Series Connections
SET/S OF 2 DL111850 - Series Connections
SET/S OF 3 DL111850 - Series Connections
SET/S OF 4 DL111850 - Series Connections
SET/S OF 5 DL111850 - Series Connections
SET/S OF 6 DL111850 - Series Connections
SET/S OF 7 PSU-10S - Series Connections
SET/S OF 8 PSU-10S - Series Connections
SET/S OF 9 PSU-10S - Series Connections
continue

3. SELECT LED DRIVER / DIMMING OPTION:

[click to expand]

Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

Casambi Smartphone App required for Bluetooth control (available on IOS & Android)

P&P/BT Plug & Play | Bluetooth Controllable Driver (no mains lead)
P&P/DA Plug & Play | 1-10V Dimmable Driver (no mains lead)
P&P/DAP Plug & Play | 1-10V Dimmable Driver with Manual Pot Dimmer, 2m Mains Lead & UK Plug
P&P/DD Plug & Play | DALI Dimmable Driver (no mains lead)
P&P/DT Plug & Play | TRIAC (Mains) Dimmable Driver (no mains lead)
P&P/OO Plug & Play | Standard On/Off LED Driver (no mains lead)
X Driver or Dimmer not required (not recommended)
continue

Components

Verify your component options below

Code
DL10102H/W/C
QUANTITY:
I have checked the components listed above are the correct specification for this quote
Add To Quote
